Required Hardware
This motor requires a L1 Certification to buy.
The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/426 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 54mm small nozzle aft closure (54ACCSN) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 54mm Delay Drilling Tool (54RDDT), Not Included.
This RMS motor reload utilizes RCSs exclusive Black Max™ aerospace grade composite propellant formulation, which produces a visible black exhaust plume and a denser dark tracking smoke.
The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

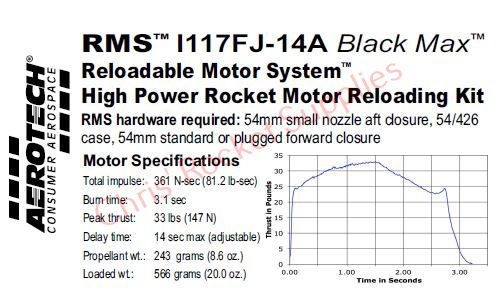

Specifications:
Motor Diameter: 2.125 inches (54mm)
Casing Length: 6.14 inches (156mm)
Hardware Required: RMS-54/426
Total Impulse: 361 N-sec
Average Thrust: 117 newtons
Peak Thrust: 164.7 N-sec
Thrust Duration: 3.1 seconds
Delay Time: adjustable up to 14 seconds
Propellant Weight: 243 grams
Motor Weight: 566 grams
