Chute Release

Chute Release
  • Click to enlarge

$129.95


Product Information
Specification

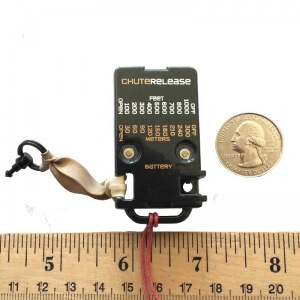

Chute Release is a small electronic device that holds your rocket parachute closed until it drops to an altitude that you choose. This is great for windy days and small fields when normally your rocket would drift too far while descending under parachute.

Simply wrap the elastic around your folded parachute and snap it into the other side of the release, then set the altitude from 100 to 1000 feet (30-300 meters) and you are ready for launch.

Specifications

Size54 x 31 x 10 mm (2.1 x 1.2 x 0.4 in)
Weight17.5 g (0.6 oz)
Minimum AltitudeFor flights higher than 200 feet (60m) above ground level
Release altitudes100, 200, 300, 400, 500, 600, 700, 800, 1000 feet (30, 60, 90, 120, 150, 180, 210, 240, 300 meters)
Rocket requirementsRequires the use of motor ejection, and enough space for Chute Release and parachute, at least BT-60 1.6″ (41.6mm) diameter tube. May work in some 38mm rockets.
BatteryRechargeable Li-Po battery and USB charging cord included.



How Does It Work?

Chute Release uses an elastic band which wraps around the parachute and has a pin which snaps in place on the other side of Chute Release. Chute Release can sense altitude using a highly accurate atmospheric pressure sensor. When the rocket descends to the chosen altitude, an electronic servo releases the pin and lets the parachute open. Chute Release is powered by a lithium-polymer batter that can be recharged from any USB port (cable included).

Chute Release is constructed of incredibly strong polycarbonate plastic to stand up to ejection charges and impacts. The mechanicals are constructed of precisely-machined aircraft aluminum, Teflon coated so that they need no lubrication.

What’s Included

  • Chute Release
  • USB recharging cable
  • Two(2) pins (primary and spare)
  • Ten(10) regular elastic bands 1-3/4 x 1/4″
  • Five(5) large elastic bands 3-1/2 x 3/8″
  • Two(2) tethers, 200 lb strength
  • User Guide
Product Code2000
ManufacturerJolly Logic
Stock Level1
ConditionNew
Weight0.5Lb
