Aerotech H268R-14A Redline Rocket Motor


Product Information
Specification

Required Hardware

This motor requires a L1 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-29/360 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 29mm Forward Seal Disc during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), Not Included.

This RMS motor reload utilizes RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators. This AeroTech motor is U.S. mailable with no hazmat fee!

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

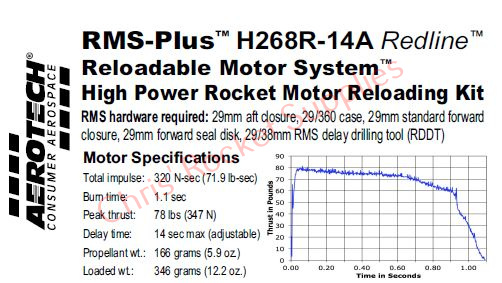

  • Specifications:

    Motor Diameter: 1.125 inches (29mm)

    Casing Length: 12.7 inches (322mm)

    Hardware Required: RMS-29/360

    Total Impulse: 311.48 N-sec

    Average Thrust: 268.5 newtons

    Peak Thrust: 338.4 N-sec

    Thrust Duration: 1.16 seconds

    Delay Time: adjustable up to 14 seconds

    Propellant Weight: 166 grams

    Motor Weight: 357.9 grams

Earn Reward Points: 51

Earn Discount: $1.53

Product Code973
ManufacturerAerotech Rocketry
ConditionNew
Weight0.65Lb
