Aerotech J500G-14A Mojave Green Rocket Motor

Aerotech J500G-14A Mojave Green Rocket Motor
  • Click to enlarge

$95.99


Product Information
Specification

Required Hardware

This motor requires a L2 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-38/720 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 38mm Forward Seal Disc during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 18-38mm Delay Drilling Tool (RDDT), not included.

This RMS motor reload utilizes RCSs exclusive Mojave Green™ aerospace grade composite propellant formulation, which produces a brilliant green exhaust plume with a moderate amount of smoke. Mojave Green™ motors high density and specific impulse delivers a higher total impulse in each motor size than any other AeroTech propellant.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

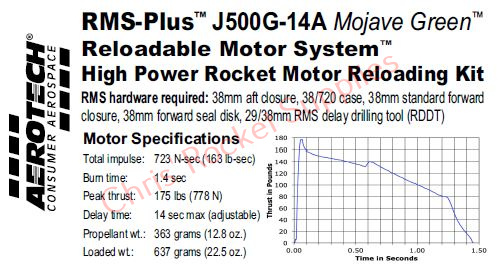

  • Specifications:

    Motor Diameter: 1.5 inches (38mm)

    Casing Length: 13.26 inches (337mm)

    Hardware Required: RMS-38/720

    Total Impulse: 723 N-sec

    Average Thrust: 500 newtons

    Peak Thrust: 787.9 N-sec

    Thrust Duration: 1.4 seconds

    Delay Time: adjustable up to 14 seconds

    Propellant Weight: 363 grams

    Motor Weight: 654 grams

Earn Reward Points: 95

Earn Discount: $2.85

Product Code1021
ManufacturerAerotech Rocketry
Stock Level12
ConditionNew
Weight1.15Lb
