Aerotech H45W-P White Lightning DMS Rocket Motor

Aerotech H45W-P White Lightning DMS Rocket Motor
  • Click to enlarge

$62.99


Product Information
Specification

This motor requires a L1 Certification to buy.

The AeroTech Disposable Motor System DMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech DMS motors use all-disposable components. The nozzle and propellant are already installed. You will need to set the desired delay time using the Universal Delay Drilling Tool (UDDT), Not Included, and then pour in the ejection charge. The Universal Delay Drilling Tool (UDDT) is required to adjust to a shorter time delay on all DMS rocket motors.

The H45W-PS is a Plugged/Smoke motor. Plugged reload kits do not utilize a motor-actuated ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a molded plastic bulkhead and RCSs exclusive White Lightning™ aerospace grade composite propellant formulation, which produces a brilliant white flame with lots of dense white smoke and a throaty roar at lift-off.

This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Initiator and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

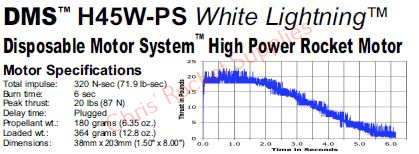

  • Specifications:

    Motor Diameter: 1.5 inches (38mm)

    Casing Length: 7.98 inches (203mm)

    Total Impulse: 320 N-sec

    Average Thrust: 80 newtons

    Peak Thrust: 87 N-sec

    Thrust Duration: 6.0 seconds

    Delay Time: Plugged

    Propellant Weight: 180 grams

    Motor Weight: 364 grams

Earn Reward Points: 62

Earn Discount: $1.86

Product Code1521
ManufacturerAerotech Rocketry
Stock Level4
ConditionNew
Weight0.95Lb
