Aerotech J540R-14A Redline Rocket Motor


Product Information
Specification

Required Hardware

This motor requires a L2 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/1280 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. Important: High Power RMS reload kits are not compatible with Mid Power RMS products. You will need to set the desired delay time using the 54mm Delay Drilling Tool (54RDDT), not included.

This RMS motor reload utilizes RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

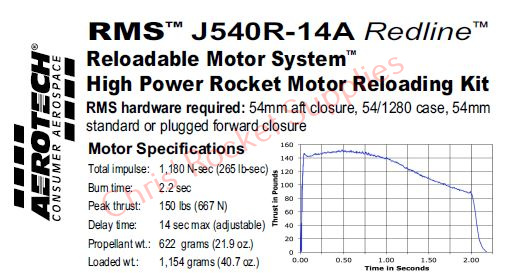

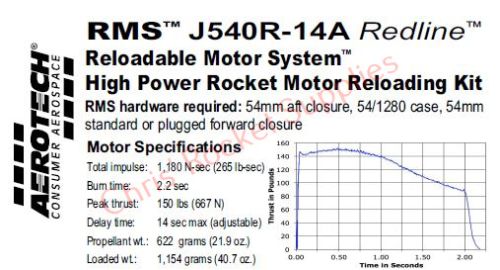

  • Specifications:

    Motor Diameter: 2.125 inches (54mm)

    Casing Length: 14.48 inches (368mm)

    Hardware Required: RMS-54/1280

    Total Impulse: 1161 N-sec

    Average Thrust: 540 newtons

    Peak Thrust: 666.9 N-sec

    Thrust Duration: 2.2 seconds

    Delay Time: adjustable up to 14 seconds

    Propellant Weight: 679 grams

    Motor Weight: 1084 grams
