Aerotech J99N-P Warp-9


Product Information
Specification

This reload requires the use of the 54/852 case, 54 forward closure54mm small nozzle aft closure (54ACCSN) and 54mm forward closure bulkhead plug (54FCBP)

This motor requires a L2 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-54/852 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a 54mm small nozzle aft closure (54ACCSN) and 54mm forward closure bulkhead plug (54FCBP) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The J99N-P is a Plugged motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

This RMS motor reload utilizes RCSs exclusive Warp-9™ aerospace grade composite propellant formulation, which produces a prominent yellow-orange flame studded with “mach diamonds.” Warp-9 is AeroTech’s fastest burning propellant. Originally developed for Orbital’s Pegasus® fin motors, Warp-9 is perfect when you need the highest thrust possible from a given motor size. When used in a “endburning” grain configuration, Warp-9 delivers a unique thrust curve profile.

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

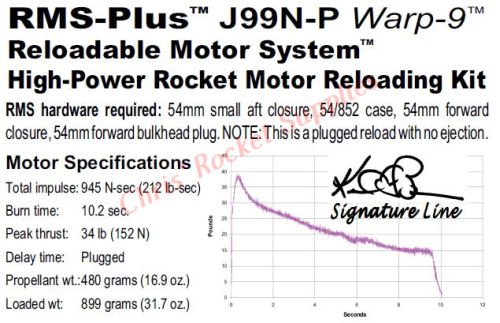

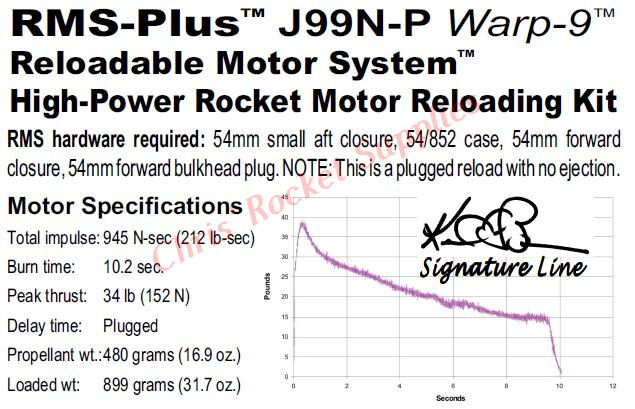

  • Specifications:

    Motor Diameter: 2.125 inches (54mm)

    Casing Length: 9.56 inches (243mm)

    Hardware Required: RMS-54/852

    Total Impulse: 935.2 N-sec

    Average Thrust: 99 newtons

    Peak Thrust: 127.2 N-sec

    Thrust Duration: 10.8 seconds

    Delay Time: Plugged

    Propellant Weight: 480 grams

    Motor Weight: 894 grams

Earn Reward Points: 109

Earn Discount: $3.27

Product Code2871
ManufacturerAerotech Rocketry
ConditionNew
Weight1.4Lb
