Aerotech K535W-14A White Lightning DMS Rocket Motor


Product Information
Specification

Drill Tool (Required)

This motor requires a L2 Certification to buy.

The AeroTech Disposable Motor System DMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech DMS motors use all-disposable components. The nozzle and propellant are already installed. You will need to set the desired delay time using the Universal Delay Drilling Tool (UDDT), Not Included, and then pour in the ejection charge. The Universal Delay Drilling Tool (UDDT) is required to adjust to a shorter time delay on all DMS rocket motors.

DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a molded plastic bulkhead and RCSs exclusive White Lightning™ aerospace grade composite propellant formulation, which produces a brilliant white flame with lots of dense white smoke and a throaty roar at lift-off.

This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Initiator and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

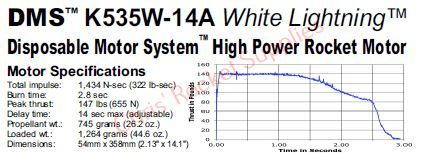

  • Specifications:

    Motor Diameter: 2.125 inches (54mm)

    Casing Length: 14.10 inches (358mm)

    Total Impulse: 1434 N-sec

    Average Thrust: 535 newtons

    Peak Thrust: 655 N-sec

    Thrust Duration: 2.8 seconds

    Delay Time: adjustable up to 14 seconds

    Propellant Weight: 745 grams

    Motor Weight: 1264 grams

Earn Reward Points: 192

Earn Discount: $5.76

Product Code1523
ManufacturerAerotech Rocketry
ConditionNew
Weight3.25Lb
