Aerotech K780R Redline Rocket Motor


Product Information
Specification

Required Hardware

This motor requires a L2 Certification to buy.

The AeroTech Reloadable Motor System RMS is an aluminum cased reusable motor in kit form that is assembled by the user. You will need AeroTech RMS-75/2560 motor hardware to build and complete the motor for many reliable flights. Motor hardware is available separately in a complete set, and also as individual parts. This motor requires installing a forward seal disc (75FSD) during assembly. Important: High Power RMS reload kits are not compatible with Mid Power RMS products.

The K780R-PS is a Plugged/Smoke motor reload. Plugged reload kits do not utilize a motor-actuated delay or ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.

This RMS motor reload utilizes RCSs exclusive Redline™ aerospace grade composite propellant formulation, which produces a visible scarlet flame. Redline™ motors burning rate lies midway between that of White Lightning™ and Blue Thunder™. Photos don’t do justice to the “laser-beam” intensity and color of Redline™…. you have to see it to appreciate it!

The AeroTech motor reload kit comes with 1 rocket motor reload. Reload kits include all internal motor components and FirstFire™ Initiators and requires HAZMAT shipping via FEDEX.

Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

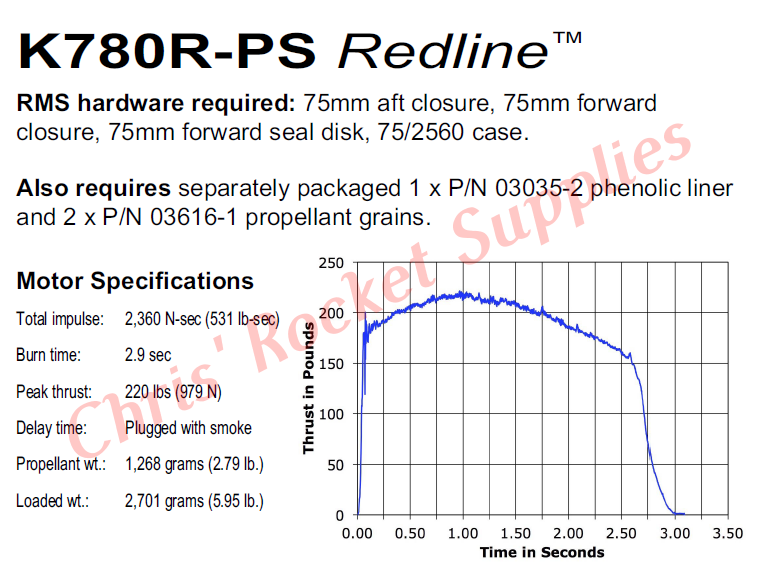

  • Specifications:

    Motor Diameter: 2.965 inches (75mm)

    Casing Length: 15.59 inches (396mm)

    Hardware Required: RMS-75/2560

    Total Impulse: 2371 N-sec

    Average Thrust: 780 newtons

    Peak Thrust: 965 N-sec

    Thrust Duration: 3.0 seconds

    Delay Time: Plugged

    Propellant Weight: 1268 grams

    Motor Weight: 2934 grams

Earn Reward Points: 202

Earn Discount: $6.06

Product Code1056
ManufacturerAerotech Rocketry
ConditionNew
Weight6Lb
