This motor requires a L2 Certification to buy.
The AeroTech Disposable Motor System DMS is a single-use motor in kit form that is assembled by the user. All of the Aerotech DMS motors use all-disposable components. The nozzle is already installed. Propellant needs to be installed.
The L875DM-PS is a Plugged/Smoke motor. Plugged reload kits do not utilize a motor-actuated ejection charge. Plugged motors must be used in conjunction with a timer, altimeter or radio-activated recovery system.
DMS motors feature a filament-wound fiberglass casing, a glass-reinforced composite phenolic nozzle, a machined aluminum bulkhead with a built-in 3/8-16 thread for a matching eye bolt and RCSs exclusive Dark Matter™ aerospace grade composite propellant formulation. Dark Matter™ is a sparky propellant, but unlike Metalstorm™ with its higher ISP and white smoke, Dark Matter™ is a black smoke sparky motor. As with all rocket motors using spark-generating propellants, special precautions must be taken to avoid fires around the launch pad by clearing the immediate area of all combustible materials in accordance with applicable fire and safety codes.
This AeroTech motor pack comes with 1 rocket motor and 1 FirstFire™ Initiator and requires HAZMAT shipping via FEDEX.
Certified by the Tripoli Rocketry Association (TRA), the National Association of Rocketry (NAR) and the Canadian Association of Rocketry (CAR).

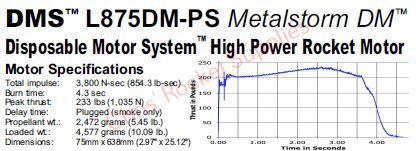

Specifications:
Motor Diameter: 2.965 inches (75mm)
Casing Length: 25.12 inches (638mm)
Total Impulse: 3800 N-sec
Average Thrust: 875 newtons
Peak Thrust: 1035 N-sec
Thrust Duration: 4.3 seconds
Delay Time: Plugged
Propellant Weight: 2472 grams
Motor Weight: 4577 grams
