Cesaroni M1890 Red Lightning Rocket Motor

Brandname

Pro98 9876M1890-P

Manufacturer

Cesaroni Technology

Man. Designation

9876M1890-P

CAR Designation

9876 M1890-P

Test Date

4/10/2008

Single-Use/Reload/Hybrid

Reloadable

Motor Dimensions mm

98.00 x 702.00 mm (3.86 x 27.64 in)

Loaded Weight

8823.00 g (308.81 oz)

Total Impulse

9875.60 Ns (2222.01 lb/s)

Propellant Weight

5280.00 g (184.80 oz)

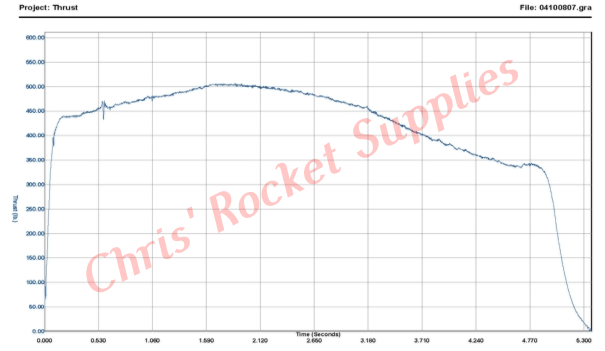

Maximum Thrust

2401.60 N (540.36 lb)

Burnout Weight

3507.00 g (122.75 oz)

Avg Thrust

1889.00 N (425.03 lb)

Delays Tested

Plugged

ISP

190.70 s

Samples per second

1000

Burntime

5.25 s

Notes

The motor was tested in CTI and RMS hardware and is certified for use with CTI and RMS hardware.
